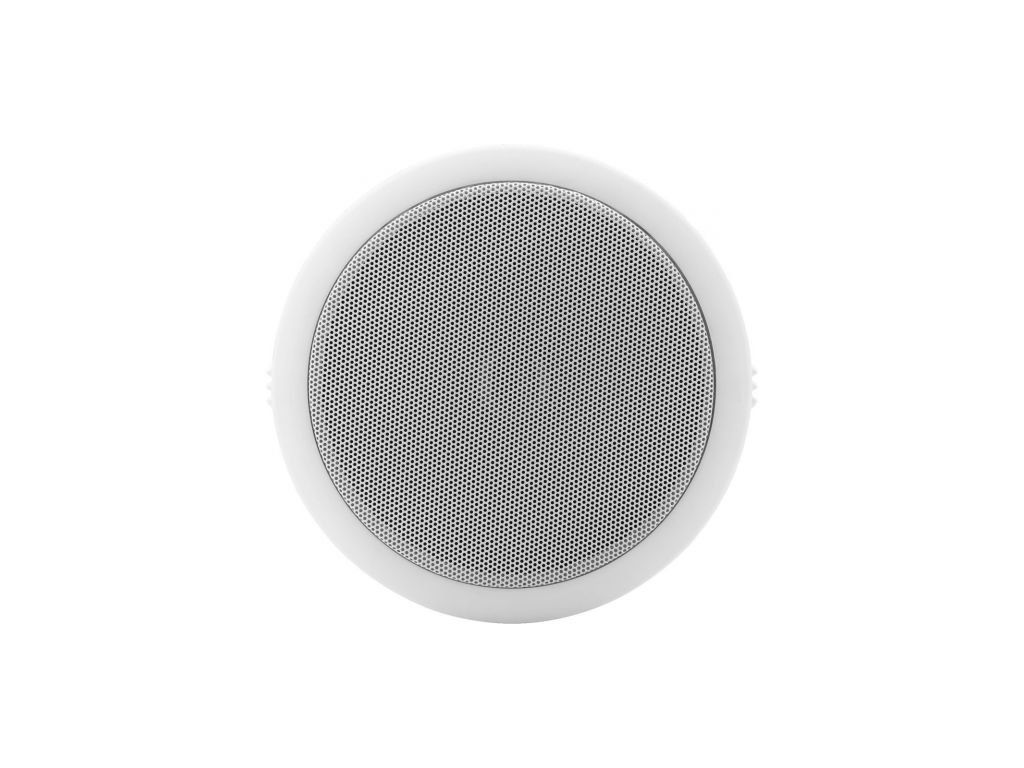

PA ceiling speaker
- 100 V transmission technology
- 15 cm (6") full range speaker
- Plastic housing with metal grille
- Power taps: 8 W
- Quick-mounting facility with spring clips
- Connection via screw terminal
- For a ceiling thickness from 5 to 25 mm
Transmission technology: 100 V
Frequency range: 90-18,000 Hz
Power rating (RMS): 8 W
SPL: 90 dB/W/m
Max. rated SPL: 99 dB
Radiation angle, horizontal: 90°
Radiation angle, vertical: 90°
Voice coil diameter: Ø 20 mm
Mounting cutout: Ø 170 mm
Mounting depth: 65 mm
Dimensions: Ø 193 mm x 72 mm
Outside diameter: Ø 193 mm
Width: Ø 193 mm
Depth: 72 mm
Colour: white
Admiss. ambient temp.: 0-40 °C
Weight: 476 g
Packing unit: 1
Type of speaker: 150
Packaging dimensions (W x H x L): 0.075 x 0.19 x 0.196 m
Gross weight: 0.542 kg
Net weight: 0.476 kg
| Kategória: | podhľadové 100V |
|---|---|
| Hmotnosť: | 0.48 kg |
| EAN: | 4007754276985 |
