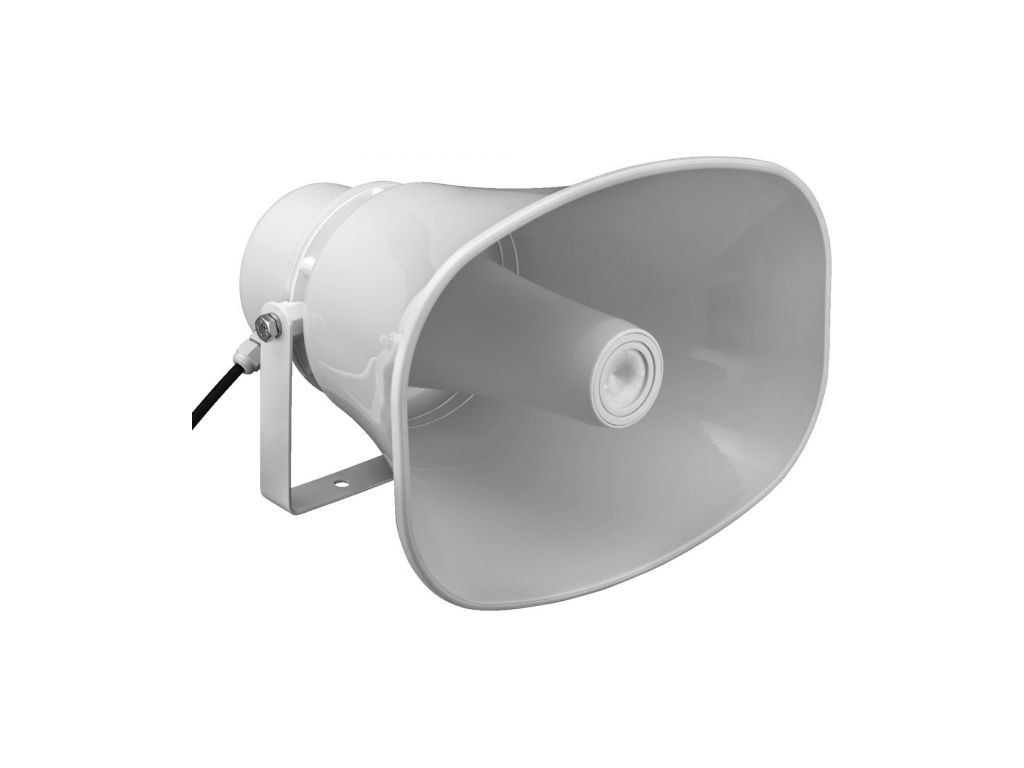

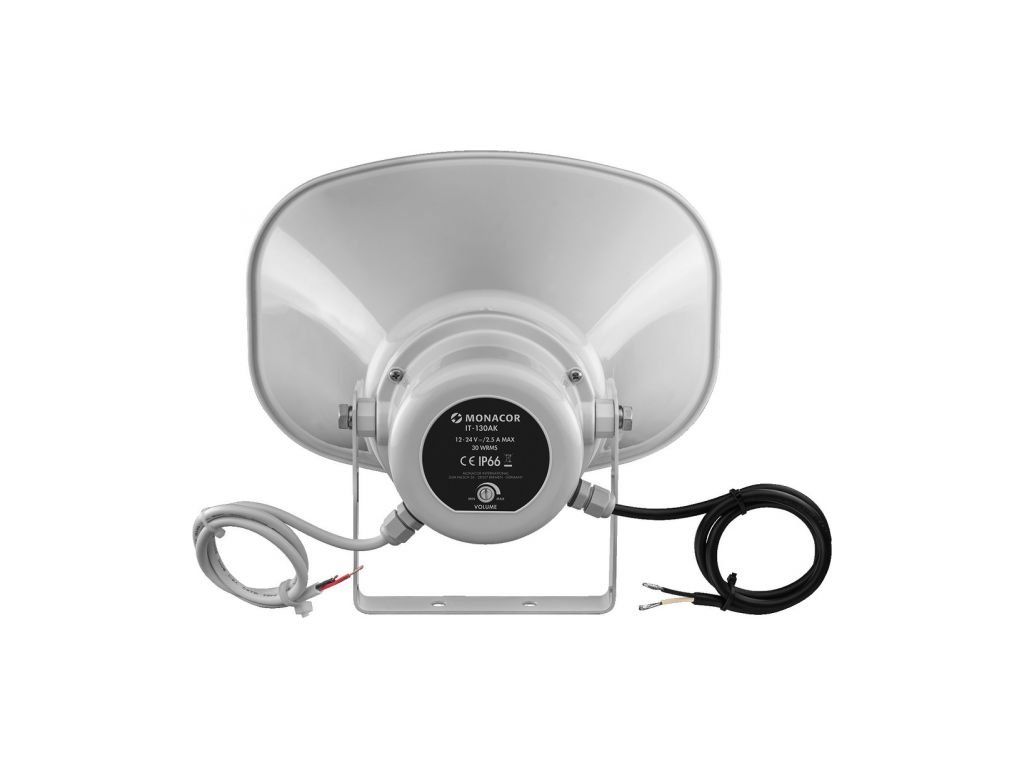

Monacor IT-130AK Active horn speaker, weatherproof

Active/passive: active
Transmission technology: cable
Total output power: 30 W
Power rating (RMS): 20 W
Frequency range: 250-16,000 Hz
Input signal: 750 mV/5 kΩ (line)
Number of speakers: 1
SPL: 109 dB/W/m
Max. rated SPL: 124 dB
Radiation angle/beam angle: H: 100°/V: 50°
Radiation angle, horizontal: 100°
Radiation angle, vertical: 50°
Features: volume control
Housing material: ABS
Colour: white
Mounting device: mounting bracket
Protection class: IP66
Admiss. ambient temp.: -20 °C to +50 °C
Power supply: 12-24 V DC/2.5 A
Dimensions: 290 x 215 x 260 mm
Width: 290 mm
Height: 215 mm
Depth: 260 mm
Weight: 1.5 kg
Inputs: open cable ends
Other features: weatherproof
Packaging dimensions (W x H x L): 0.22 x 0.285 x 0.3 m
Gross weight: 1.84 kg
Net weight: 1.5 kg
