Monacor RACK-MXT52MP3 Wall-mounted housing for MXT-52MP3
Wall-mounted housing,
for mounting the mixer with integrated MP3 player MXT-52MP3.
- Sheet steel version
- Light grey powder coating (RAL 7035)
- Attached hinged cover, opens downwards, non-removable, lockable
- Round rear panel cutout (40 mm) for cable inlet
- Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
- Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
- Max. mounting depth behind the front panel: 74 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Intended use/capacity: wall-mounted housing
Size: suitable for MXT-52MP3
Colour: grey (RAL 7035)
Version: hinged cover, opens downwards, non-removable, lockable
Material: sheet steel housing, powder-coated
Mounting accessories: matching key
Usable depth: 74 mm

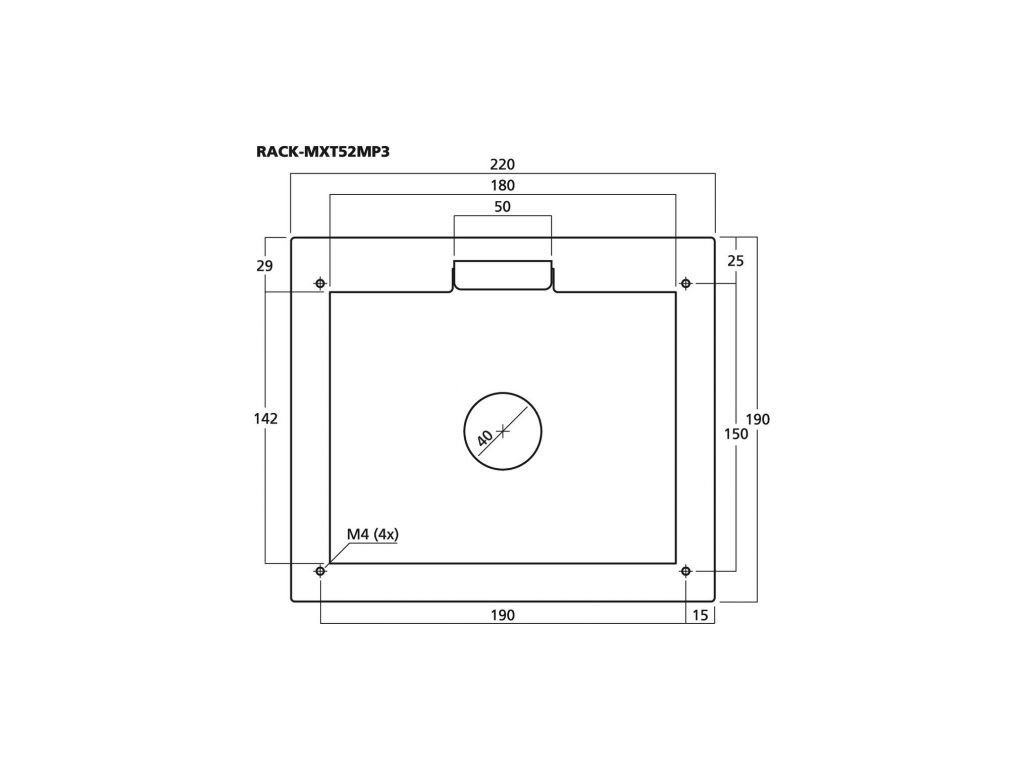

Outside dimensions: 220 x 190 x 126 mm
Width: 220 mm
Height: 190 mm
Depth: 126 mm
Weight: 2 kg
| Kategória: | rackové skrine |
|---|---|
| Hmotnosť: | 2 kg |
| EAN: | 4007754414660 |
