NEUTRIK SPEAKON Connectors
Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.
- Contact resistance: < 2 mΩ
- Current rating: 50 A (music signal)
- Self-extinguishing according to UL 94V-0

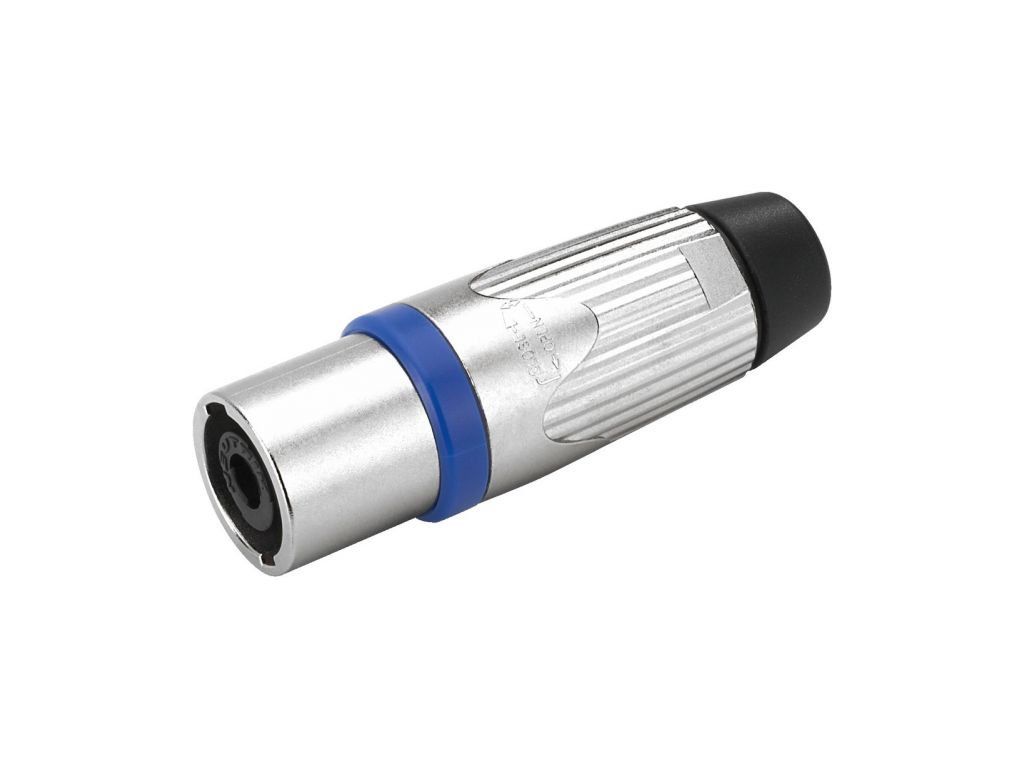

NEUTRIK SPEAKON inline jack
- Metal body
- Weatherproof when plugged in
- 4-pole solder contact for litz wires up to 6 mm2
- For cables: Ø 9-16 mm
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Description: inline jack
Type: NEUTRIK SPEAKON
Quantity: 1
Features: weatherproof when plugged in
Colour/colour coding: silver/blue
Power rating: 250 V/40 A
Insulating resistance: > 10 GΩ
Dielectric strength: DC 4 kV
Certification: UL 94 HB, IEC 68-2-20
Pole number: 4
Cable inlet: Ø 9-16 mm
Suitable cable cross section: 6 mm2
Connection: solder contacts
Strain relief: self-adjusting clamps
Material: nickel
Admiss. ambient temp.: -30-+80 °C
Weight: 73 g
| Kategória: | Speakon/Powercon |
|---|---|
| Hmotnosť: | 0.07 kg |
| EAN: | 7613187013423 |
